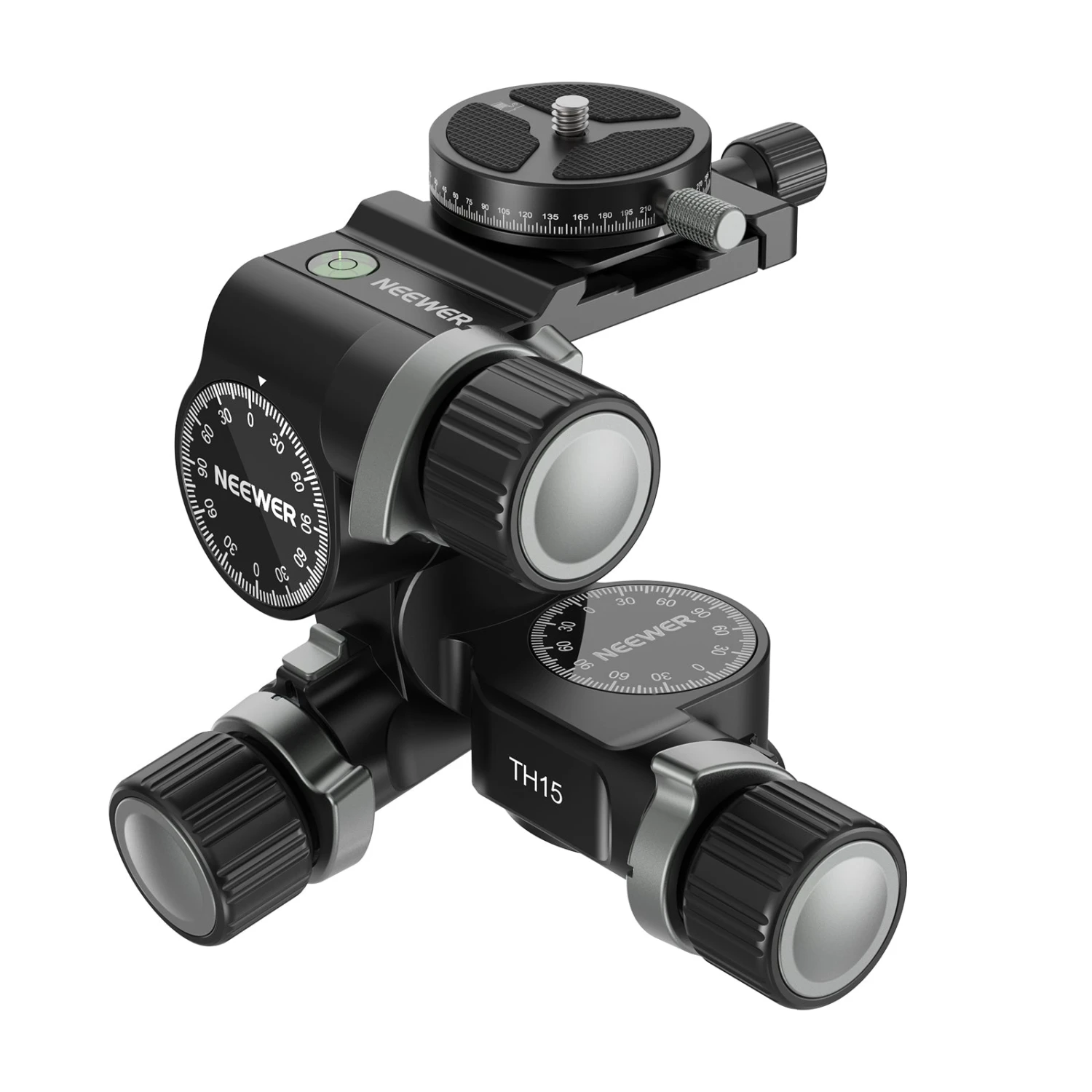

NEEWER TH15/TH16 3-Way Geared Tripod Head

Description

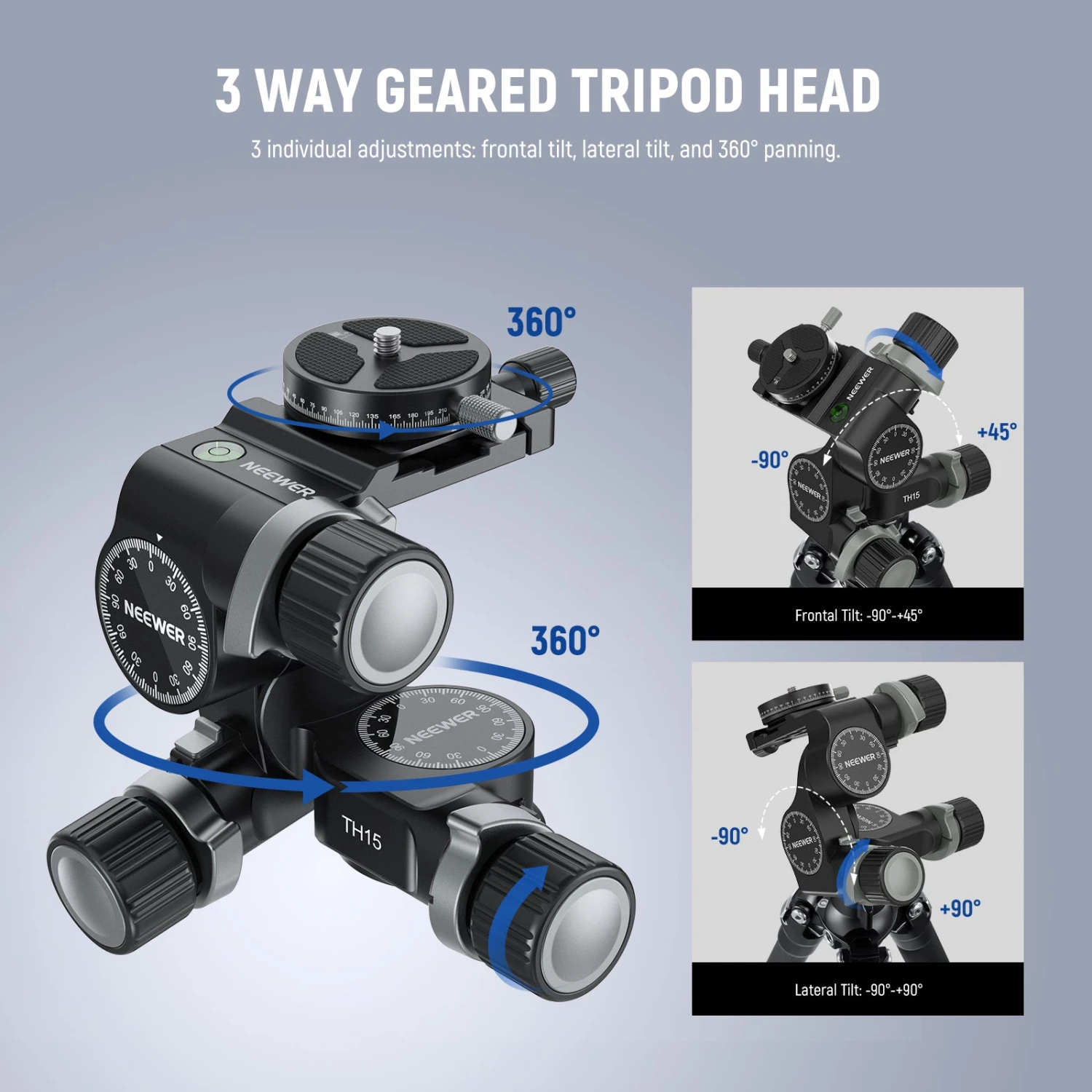

• 3 Axis Pan & Tilt Tripod Head for Efficient Positioning– NEEWER TH15 3 Way Geared Head offers 3 individual positions: -45°-90° frontal tilt, -90°-90° lateral tilt, and 360° pan. It features damping friction control and counterbalance for seamless and comfortable camera positioning. Two bubble levels help you with accurate leveling and always keep the camera straight

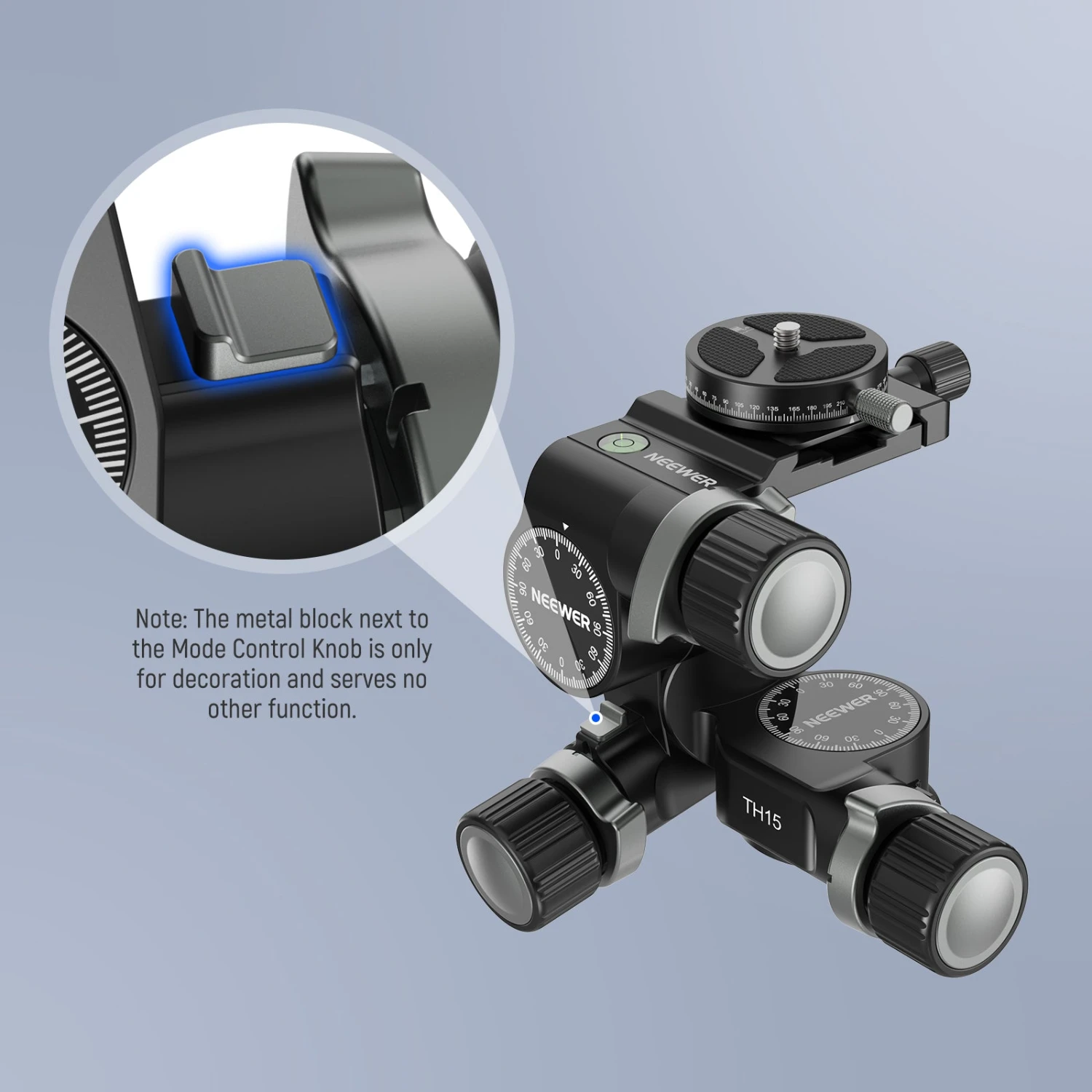

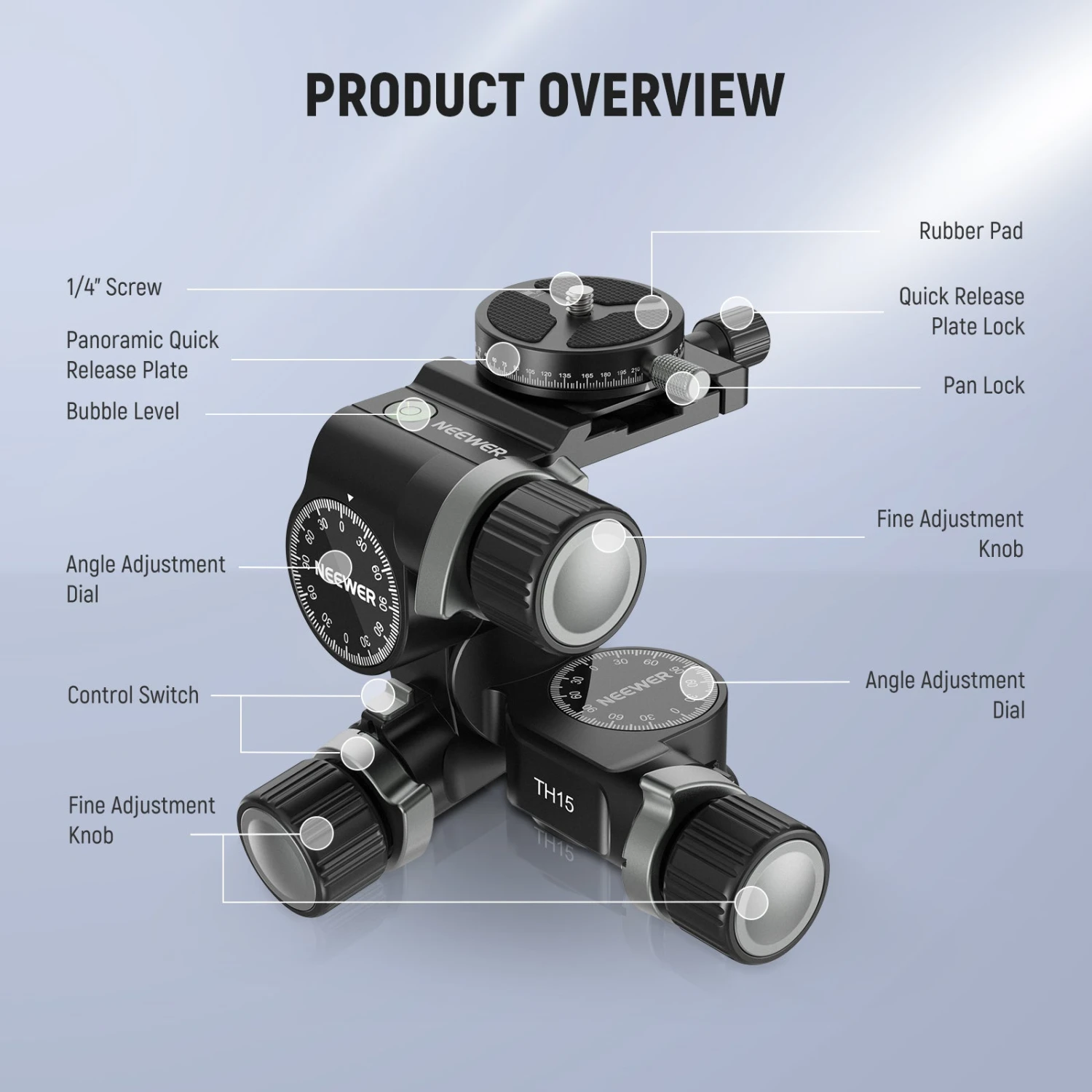

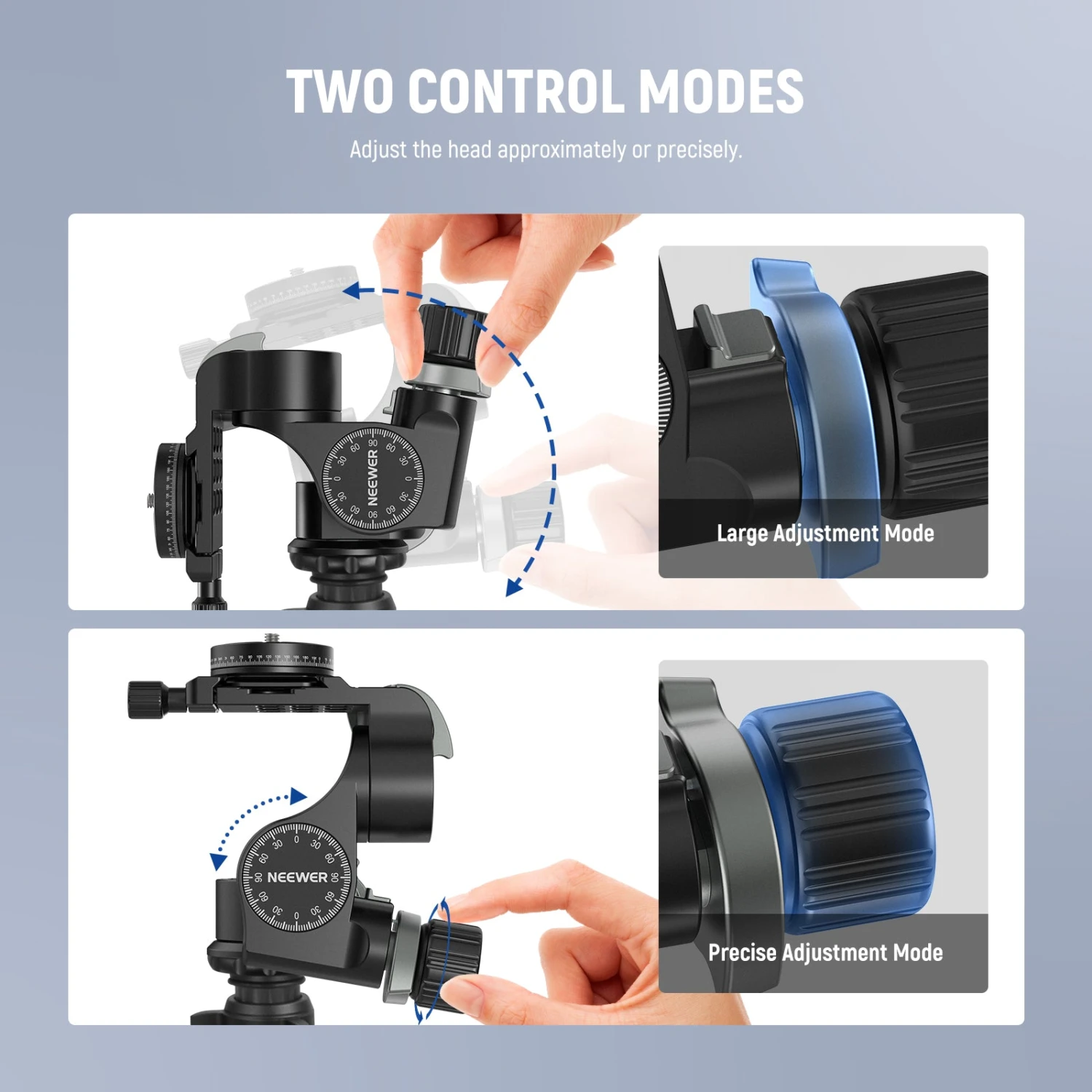

• Precise Fine Tuning/Significant Adjustment– Rotate the “Mode Control Knob” to enter the Large Adjustment Mode, enabling significant changes for horizontal or tilt shooting. Once the desired angle is set, release the Knob to secure the bracket. You can also use the Fine Adjustment Knob for small, precise adjustments to the head. Note: The metal block next to the Mode Control Knob is only for decoration and serves no other function.

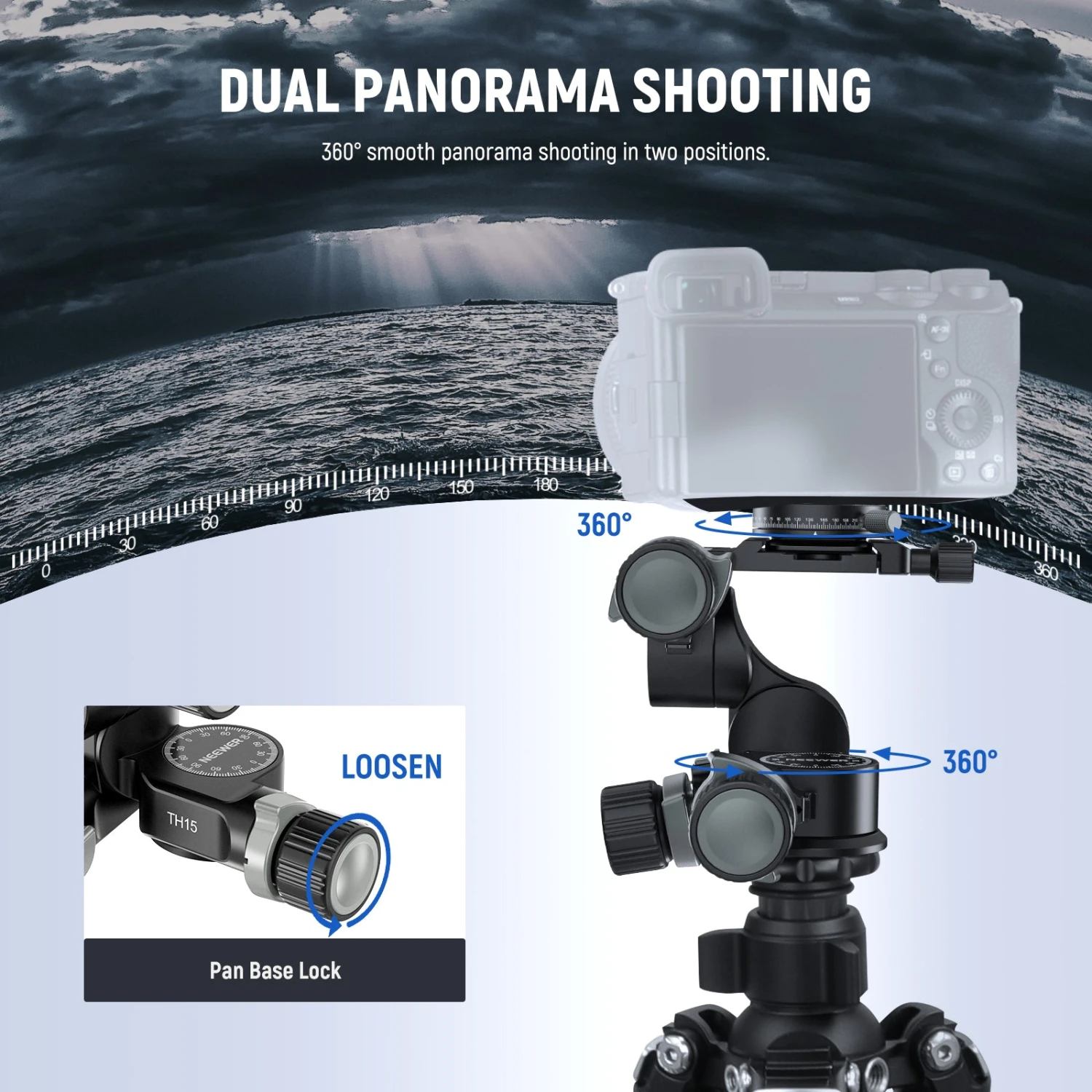

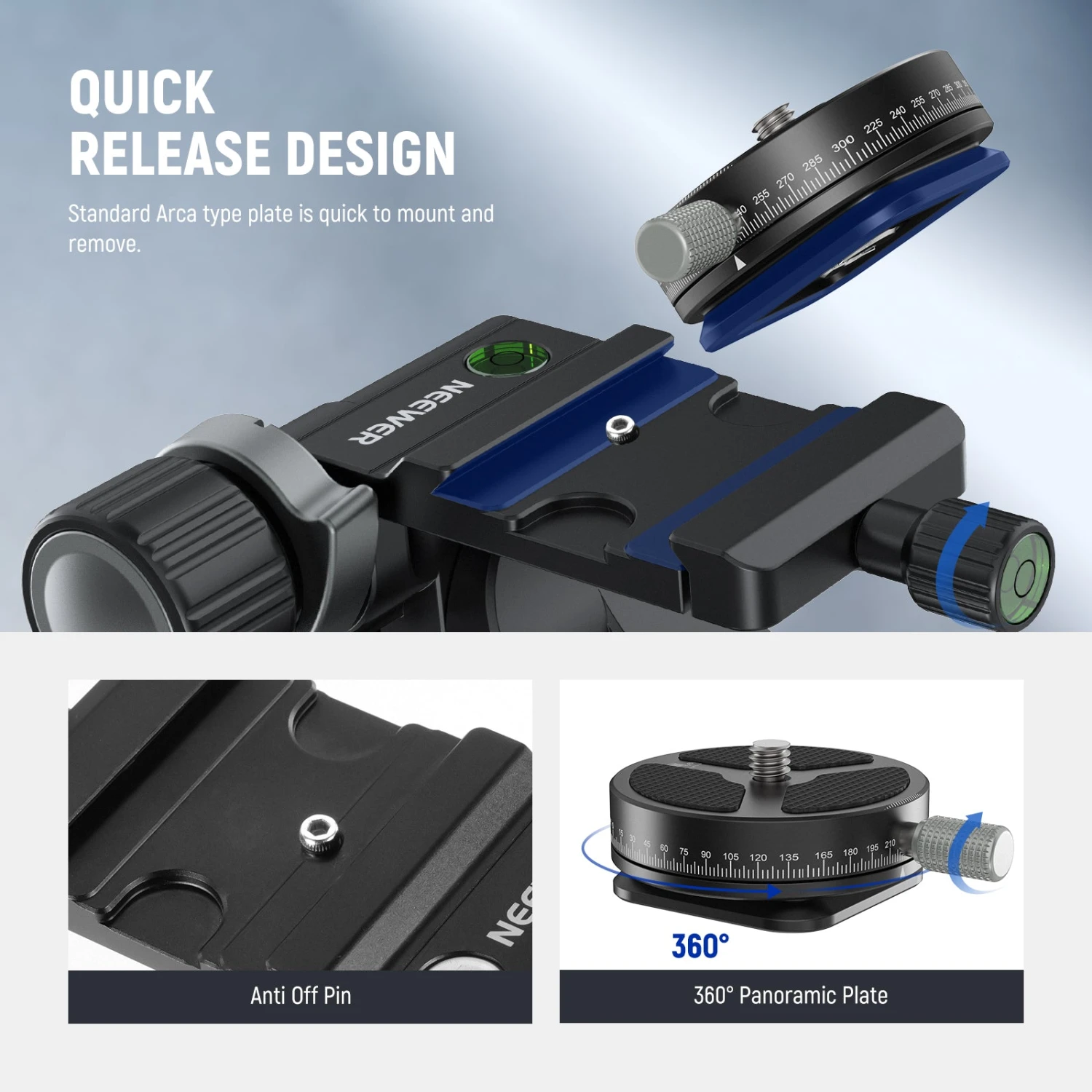

• 360° Panoramic Arca Type QR Plate– Designed with standard Arca type dovetails, the quick release plate is compatible with a wide array of tripod heads and fluid heads, which allows you to use the camera on other equipment without replacing the plate. It also features a horizontal rotation 360° scale for panoramic shooting, which can be securely locked in place using a side knob

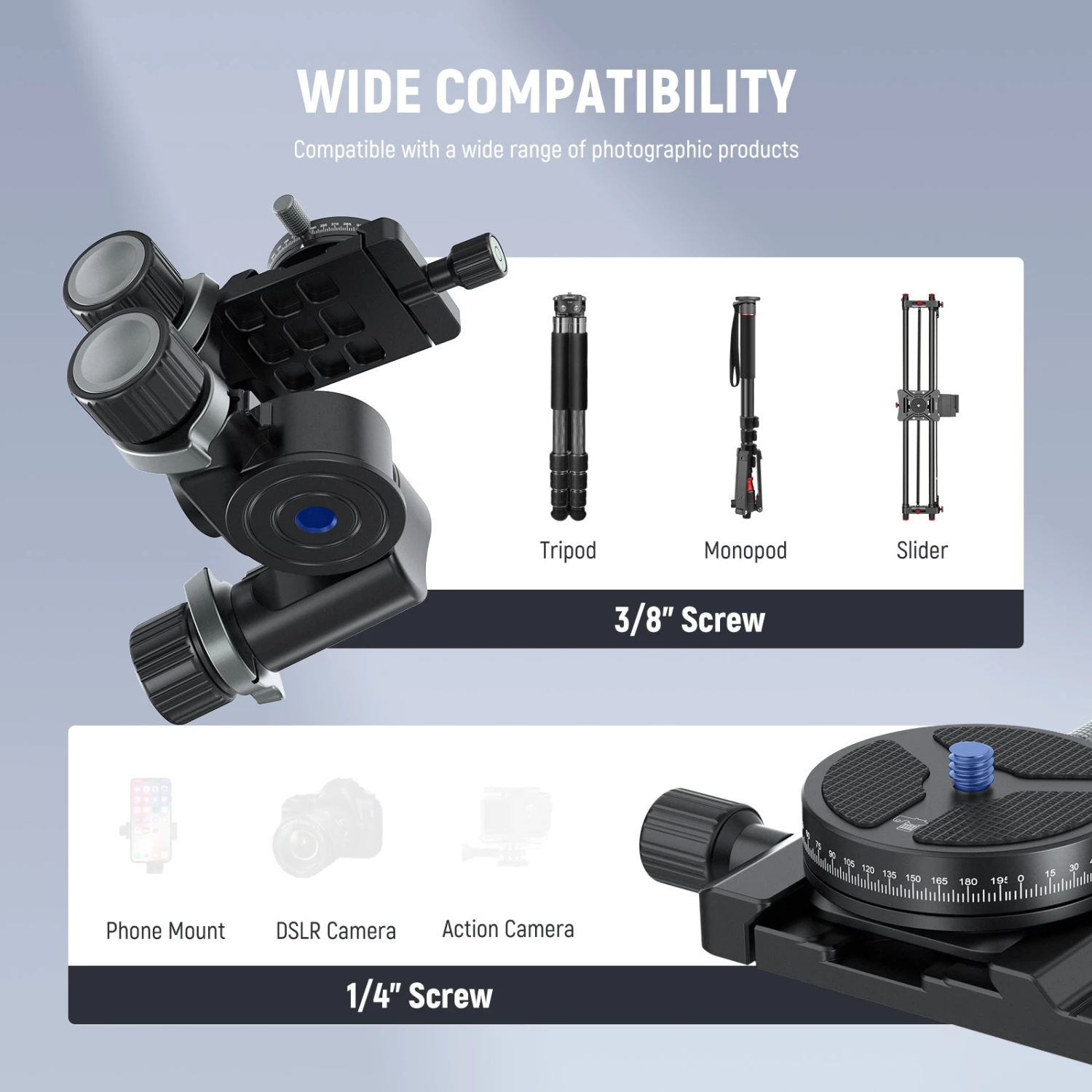

• 1/4″ Screw & 3/8″ Tripod Socket– The 1/4″ screw can mount a DSLR camera, mirrorless camera, cinema camera, or camcorder up to 13.2lb/6Kg and has rubber pads for scratch prevention. The 3/8″ tripod socket connects the head to tripods, monopods, sliders, and camera dollies for stable image and video captures

• Achieve Flexible Camera Angles– By manipulating the geared head, you can achieve diverse camera angles for panorama photography, low angle photography, overhead photography, or shoot in vertical (portrait) or horizontal (landscape) orientations. Ideal for macro photography, product photography, landscape photography, studio work, panoramic photography, architectural surveying, and video recording

Specifications

• Model: TH15
• Item Type: 3 Way Geared Tripod Head
• Compatibility: Arca type compatible tripods
• Application: Photo & Video
• Main Features: Large & Fine Tuning Modes
• Mounting Points: 1/4″, 3/8″
• Main Material: Aluminum alloy
• Load Capacity: 13.2lb/6kg
• Dimensions: 5.5″x5.2″x5″/139x131x127mm
• Weight: 32oz/906g
• Base Diameter: 2″/52mm
• Frontal Tilt: -45°~90°
• Lateral Tilt: -90°~90°
• Panoramic Rotation: 360°

Package Contents

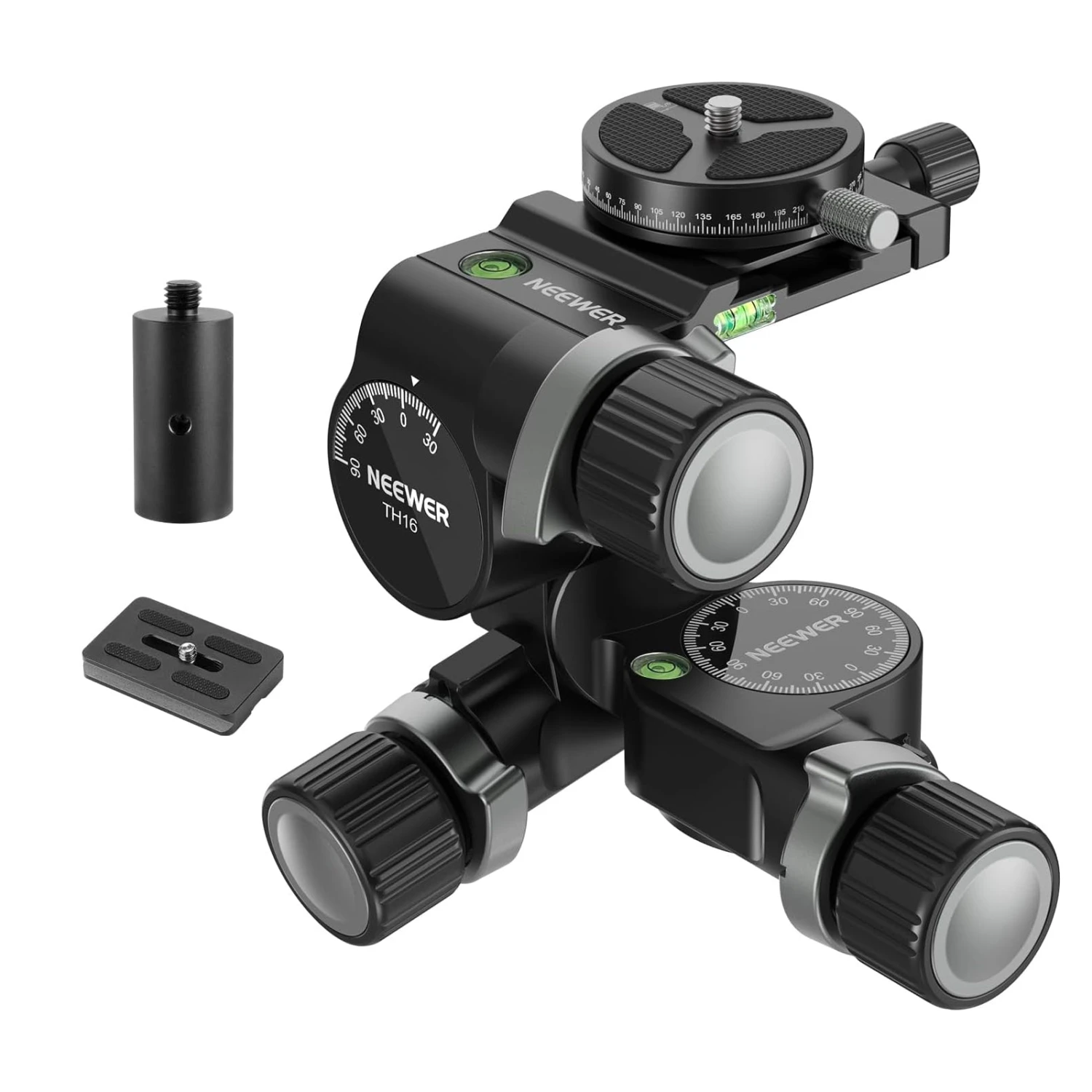

• 1 x 3 Way Geared Tripod Head

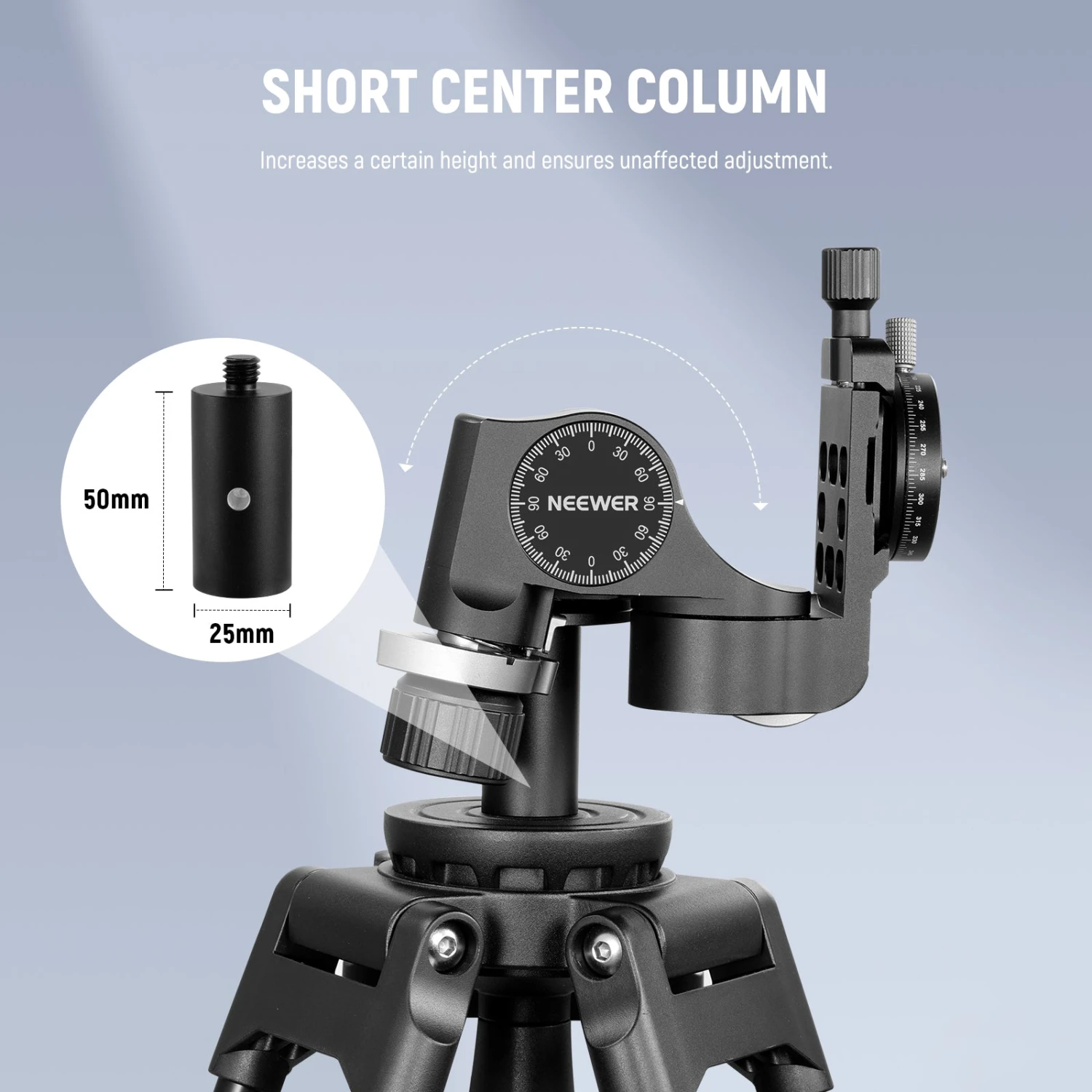

• 1 x Short Center Column
• 1 x L Shaped Hex Key
• 1 x User Manual
